Introduction:

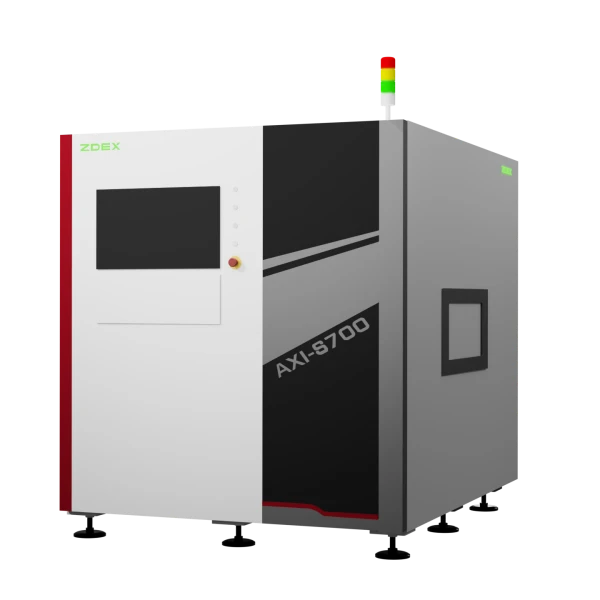

AXI-S700 is an inline 3D high-speed X-ray inspection system engineered for high-efficiency quality control. Boasting a high-performance X-ray source and advanced high-speed scanning architecture, it delivers micron-level precision imaging and end-to-end automated inspection capabilities. Equipped with cutting-edge 3D reconstruction algorithms, the system rapidly acquires high-accuracy 3D data, enabling clear visualization of internal structures of inspected components and precise identification of micro-defects.
Optimized for high-volume production environments, it meets inline quality inspection demands with ultra-high throughput. While ensuring exceptional inspection precision and operational stability, it significantly enhances production efficiency-providing a high-performance, reliable non-destructive testing (NDT) solution tailored to electronic manufacturing, semiconductor, and other high-tech industries.
Product Features
In-Line 3D
High-speed, high-precision online Inspection
360°Planar Reconstruction
With the help of planar CT imaging technology using horizontal full-circumference circular projection, it is possible to achieve all-round, blind-spot-free planar tomographic scanning and high-definition imaging of the target being detected
Multi-Mode Selection
Equipped with multi-mode selection and a flexible modular design architecture, it can achieve rapid functional expansion and customized development according to the inspection scenarios and needs of different industrial products.
Multi-Resolution
Equipped with flexible multi-resolution adjustment, the standard resolution covers the range of 10μm–30μm, and a 5μm ultra-high precision mode can be selected as needed, easily adapting to the fine inspection requirements of different industrial products.
Core Technology
Technical Specifications
|
Machine Type |
AXI-S700 |
AXI-S700HP |
|
|
X-Ray Tube |
Type |
Closed Microfocus X-Ray Tube |
|
|
Maximum Tube Voltage |
130kV |
150kV |
|
|
Maximum Tube Current |
300μA |
500μA |
|
|
Power |
39W |
75W |
|
|
Imaging System |
Detector Types |
High-Definition CMOS Flat Panel Detector |
|
|
Image Resolution (Standard Machine) |
10-20μm(5μm Optional) |
20-40μm |
|
|
Image depth |
16bit |
||
|
Inspection Object & Motion Method |
Max. Inspection Area (mm) |
600x510 |
|
|
Max. Load Capacity |
5kg |
20kg |
|
|
Motion Control Mode |
Linear Motor + Linear Encoder |
||
|
CT Mode |
Horizontal 360°Circular Projection (Planar CT) |
||
|
Machine Parameters |
Max. Power Consumption |
≤3.7kW |
≤4.0kW |
|
Machine Dimensions(mm) |
1645x2075x1800(WxDxH) |
||
|
Weight |
≈ 3700kg |
≈ 3750kg |
|
|
Safety |
Radiation Leakage |
≤ 0.5μSv/h |
|
Inspection Image
After-sales Service
Fast Response Mechanism
We offer 24/7 hotline and online technical support. In the event of equipment malfunctions, our engineers will respond within 1 hour and provide solutions within 24 hours (specific commitments subject to regional availability).
Original Factory Warranty & Regular Maintenance
Comprehensive original factory warranty services are provided. Upon expiration of the warranty period, customers shall bear the relevant costs for spare parts replacement and maintenance.
Software Upgrades & Lifecycle Support
We continuously deliver functional upgrade services for equipment software and commit to providing long-term technical and lifecycle support for sold equipment.
About Us and Factory
Rich experience in the R&D of core hardware and software technologies for CT systems.
Our team has long been dedicated to the R&D of core hardware and software technologies for CT systems, while advancing the application of artificial intelligence (AI) in industrial sectors. Focusing on high-value precision non-destructive testing (NDT) using X-ray technology in the pan-semiconductor industry, we have independently developed an industrial CT 3D reconstruction and intelligent inspection hardware-software platform, and launched standardized inline 3D AXI products. Serving industrial fields, including electronic circuits, pan-semiconductors, and consumer electronics, Empowering enterprises to address non-destructive inspection challenges in high-speed production line.
