Introduction:

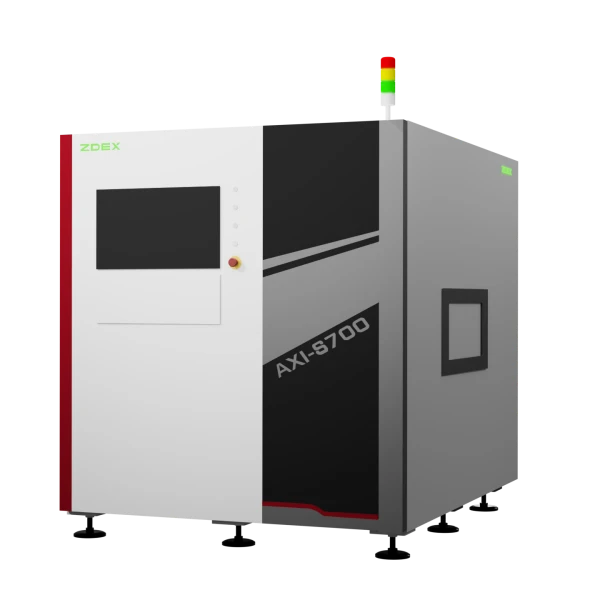

AXI-S700 Inline 3D SMT X-RAY Inspection System empowers high-precision quality control in electronic manufacturing, seamlessly adapting to high-precision inspection scenarios for SMT components such as PCBs, chip packages, and BGA/CSP. Equipped with a high-performance X-ray source, high-resolution imaging system, and advanced 3D reconstruction algorithms, it penetrates component surfaces to enable 3D visualization of internal structures, accurately detecting hidden defects including cold solder joints, bridging, voids, chip misalignment, and pin deformation with micron-level precision.
Supporting end-to-end unmanned operation, the system integrates component positioning, high-speed scanning, data analysis, and report generation into a streamlined workflow. Optimized for high-volume SMT production rhythms, it significantly boosts production efficiency while ensuring reliable non-destructive quality control. This high-performance solution empowers electronic manufacturing enterprises to enhance product yield and core competitiveness.
Product Features
In-Line 3D
High-Speed Automatic In-Line Inspection
360°Planar Reconstruction
Horizontal 360°Circular Projection (Planar CT)
Multi-Mode Selection
Modular Design; Support Functional Expansion & Custom Developmen
Multi-Resolution
10μm–30μm (5μm Optional)
Core Technology
Technical Specifications
|
Machine Type |
AXI-S700 |
AXI-S700HP |
|
|
X-Ray Tube |
Type |
Closed Microfocus X-Ray Tube |
|
|
Maximum Tube Voltage |
130kV |
150kV |
|
|
Maximum Tube Current |
300μA |
500μA |
|
|
Power |
39W |
75W |
|
|
Imaging System |
Detector Types |
High-Definition CMOS Flat Panel Detector |
|
|
Image Resolution (Standard Machine) |
10-20μm(5μm Optional) |
20-40μm |
|
|
Image depth |
16bit |
||
|
Inspection Object & Motion Method |
Max. Inspection Area (mm) |
600x510 |
|
|
Max. Load Capacity |
5kg |
20kg |
|
|
Motion Control Mode |
Linear Motor + Linear Encoder |
||
|
CT Mode |
Horizontal 360°Circular Projection (Planar CT) |
||
|
Machine Parameters |
Max. Power Consumption |
≤3.7kW |
≤4.0kW |
|
Machine Dimensions(mm) |
1645x2075x1800(WxDxH) |
||
|
Weight |
≈ 3700kg |
≈ 3750kg |
|
|
Safety |
Radiation Leakage |
≤ 0.5μSv/h |
|
Inspection Image
After-sales Service
Fast Response Mechanism
We offer 24/7 hotline and online technical support. In the event of equipment malfunctions, our engineers will respond within 1 hour and provide solutions within 24 hours (specific commitments subject to regional availability).
Original Factory Warranty & Regular Maintenance
Comprehensive original factory warranty services are provided. Upon expiration of the warranty period, customers shall bear the relevant costs for spare parts replacement and maintenance.
Software Upgrades & Lifecycle Support
We continuously deliver functional upgrade services for equipment software and commit to providing long-term technical and lifecycle support for sold equipment.
