Introduction:

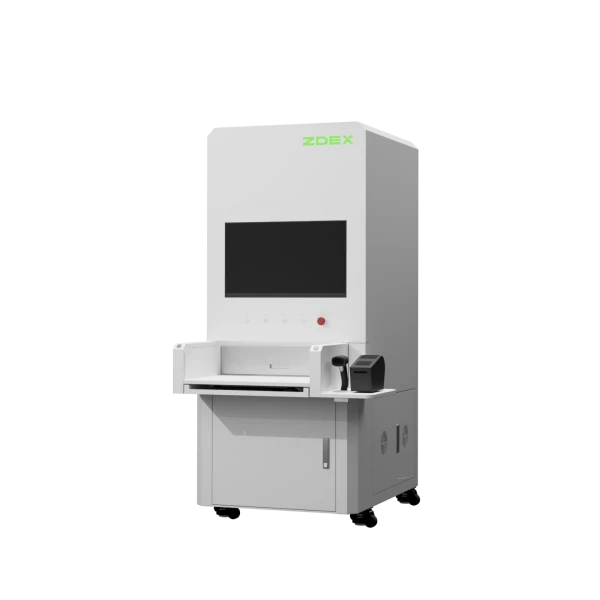

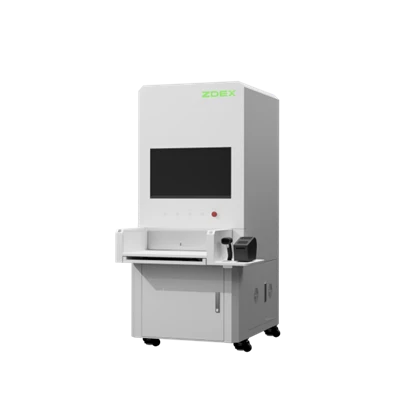

C300 is a dedicated offline SMD X-ray counter for the SMT industry, adopting a closed X-ray tube and high-resolution detector, focusing on accurate counting of resistor-capacitor and IC SMDs. Compatible with 7-17 inch SMD reels, moisture-sensitive packages, etc., it does not require production line linkage and can be independently used in scenarios such as SMD incoming inspection and warehouse inventory to achieve non-destructive statistics.

Product Features

product-50-50

SMD-Specific Imaging Optimization

Optimizes algorithms for small SMD sizes, filters packaging interference, ensuring accurate counting of micro SMDs.

product-50-50

Wide SMD Type Compatibility

Supports counting of special-shaped and bulk SMDs, adapts to mainstream packages, solving special SMD counting problems.

product-50-50

Offline Efficient Counting

Automatic single/multi-tray switching, 8s/4pcs for 7-inch SMD reels and 8s/1pc for reels over 7 inches, meeting batch needs.

product-50-50

SMD Data Traceability

Connectable to MES/ERP systems, inductive label printing prevents mislabeling, and retained records support full-process traceability.

product-50-50

Safety Compliance Design

Radiation leakage ≤0.5μSv/h, integrated grating anti-pinch, ensuring operation safety.

Technical Specifications

Type	Item	Parameter
Flat Panel Detector	Pixel Size	140μm
	Pixel Matrix	3072*3072
	Image Frame Rate	2fps
	Effective Area (mm)	430*430mm
X-Ray Tube	Tube Type	Closed
	Tube Voltage	80KV
	Tube Current	750μA
Machine Parameters	Inspection Capability	7"~17"Tape Reel
	Tray Height	≤ 80mm
	Minimum Component Size	01005
	nspection Accuracy	99.99%
	Inspection Time (s)	Single Tray: 8 s (7″–17″); Batch Mode: 8 s for four 7″ trays
	Display	Integrated 27-inch HD
	Operating System	Windows10 64 bit
	Machine Dimensions (mm)	800x1385x1850(WxDxH)
	Weight	Approximately 800kg
	Supply Voltage	220AC/50HZ
	Power Consumption	Max 1.5kW
Safety	Radiation Leakage	≤ 0.5μSv/h
	National Radiation Safety License	Su Huan Radiation Certificate [B1839]

Inspection Image

Our Servic

1. Installation & Commissioning

Our professional team provides full on-site installation and setup, including calibration of the X-ray detector, verification of counting accuracy, and system testing. This ensures the machine is ready for reliable operation immediately upon deployment.

2. Operator Training

We offer comprehensive training for your staff, either on-site or remotely. Training covers proper system operation, software usage, handling of SMT components, safety protocols, and basic troubleshooting to maximize efficiency and reduce errors.

3. Maintenance & Technical Support

Routine maintenance and support are provided to ensure the system operates at peak performance. This includes detector cleaning, software updates, and remote or on-site troubleshooting. Our technicians are available to resolve issues promptly, minimizing downtime.

4. Software & System Upgrades

Clients can receive proprietary software updates and algorithm enhancements, improving counting accuracy, speed, and compatibility with new component types. Upgrades ensure your C300 remains efficient and adaptable to evolving production needs.

About Us and Factory

Rich experience in the R&D of core hardware and software technologies for CT systems.

Our team has long been dedicated to the R&D of core hardware and software technologies for CT systems, while advancing the application of artificial intelligence (AI) in industrial sectors. Focusing on high-value precision non-destructive testing (NDT) using X-ray technology in the pan-semiconductor industry, we have independently developed an industrial CT 3D reconstruction and intelligent inspection hardware-software platform, and launched standardized inline 3D AXI products. Serving industrial fields, including electronic circuits, pan-semiconductors, and consumer electronics, Empowering enterprises to address non-destructive inspection challenges in high-speed production line.

FAQ

Q1:Can the C300 count multiple SMD component types in a single batch?

A1:Yes, the C300 is capable of counting multiple types of SMD components in one session, including resistors, capacitors, ICs, and moisture-sensitive devices. Its intelligent recognition software automatically identifies component types and accurately calculates quantities, reducing manual sorting and saving production time.

Q2:How does the system handle different reel sizes and trays?

A2:The C300 supports tape reels from 7" to 17" as well as standard JEDEC trays. The system automatically adjusts detection parameters for reel width, component height, and tray format, ensuring fast and reliable counting regardless of component packaging.

Q3：What measures ensure counting accuracy?

A3：Accuracy is maintained through high-resolution X-Ray imaging, self-developed recognition algorithms, and calibration routines. The system achieves 99.9%–100% accuracy with minimal repeated counting error (≤ 0.1%), ensuring inventory reliability for critical SMT production processes.

Q4:Can the C300 integrate with production management systems?

A4: Yes, the system can be connected to MES, ERP, or WMS platforms based on customer requirements. This allows automatic data transfer, real-time inventory updates, and better production visibility, improving workflow efficiency and reducing human errors.
