Introduction:

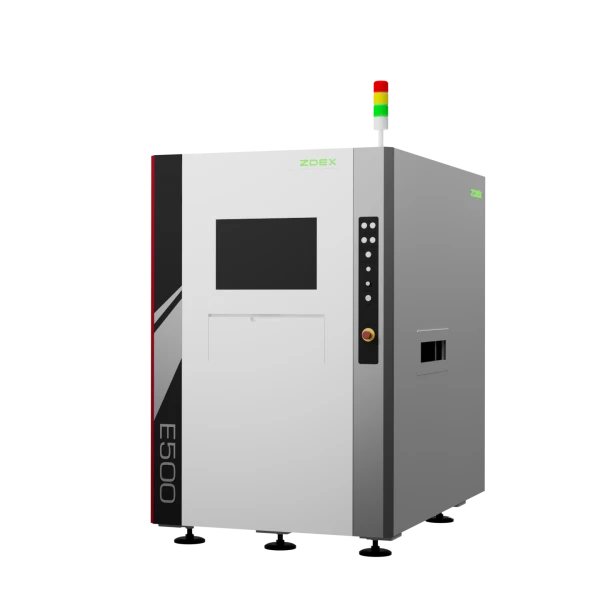

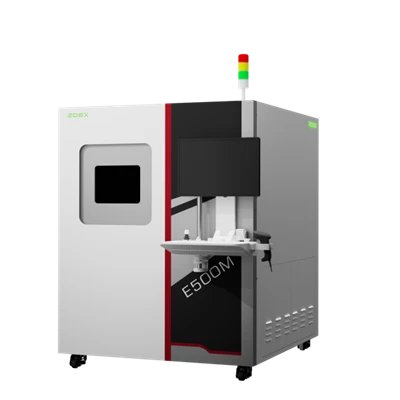

AXI-E500 is primarily designed for inspection applications in traditional semiconductor packaging, including IGBT 2D inspection, Leadframe-based MOS device analysis, MEMS and other semiconductor component inspection. The system supports algorithm customization to enhance inspection flexibility and adaptability. It also enables multi-angle inspection, with the imager supporting multi-angle rotation and tilting to accommodate complex inspection scenarios.
Product Features
Intelligent Inspection Software
Equipped with seamlessly integrated AI algorithms to streamline and optimize the inspection workflow.
Customizable Inspection Algorithms
Support customizable algorithm development to enhance flexibility and adaptability for specific applications.
Multi-Angle Inspection
Support imager rotation and tilt from multiple angles to accommodate complex inspection scenarios.
Diversified Measurement Tools
Provide a comprehensive suite of measurement tools to address varied inspection requirements.
Core Technology
Technical Specifications
|
Type |
Item |
E500 |
E500HD |
|
X-Ray Tube |
Tube Type |
Enclosed type |
|
|
Tube Voltage |
130kV |
110kV |
|
|
Tube Current |
300μA |
200μA |
|
|
Max. Power |
39W |
20W |
|
|
Imaging System |
Detector Types |
High-definition flat panel detector |
|
|
Image Resolution |
10μm/20μm/30μm |
≤2μm |
|
|
Image Depth |
16bit |
||
|
Imaging Method |
2D/2.5D |
||
|
Inspection Object & Motion Method |
Max. Inspection Area (mm) |
400*400 |
|
|
Max. Load Capacity |
5kg |
2kg |
|
|
Motion Control Mode |
Linear Motor + Linear Encoder |
||
|
Machine Parameters |
Max. Power Consumption |
2.0kW(Single-Phase) |
|
|
Machine Dimensions |
1200mmx1760mmx1850mm |
||
|
Weight |
≈2000kg |
||
|
Safety |
Radiation Leakage |
≤ 0.5μSv/h |
|
|
National Radiation Safety License |
Suzhou Huanhuai radiation certificate [B1839] |
